If you’ve ever stood in your bathroom with a tape measure in one hand and a half-finished sketch in the other, wondering whether the bath you actually want will fit — you’re not alone. It’s one of the most common places renovation plans stall out, usually right after someone (a designer, a plumber, a well-meaning neighbour) tells you “there’s no way that’s going to fit.”
Sometimes they’re right. Often, they’re guessing.
Quick answer: To plan a bathroom layout on paper, measure the room’s exact dimensions along with door swings, window positions, and existing plumbing points. Draw the space to scale on graph paper — a common ratio is 1 square equals 4 inches (or 10cm). Then cut out scaled paper or cardboard templates of each fixture and physically test different arrangements before locking anything in. Cross-check against basic clearance guidelines, then verify the winning layout with painter’s tape on the actual floor before you commit to demolition.
That last step matters more than people think. A drawing on paper can lie to you in small, expensive ways. A full-scale mockup on the floor rarely does.
Quick Takeaways
- Measure the room, doors, windows, and existing plumbing before you think about fixtures
- Draw everything to scale — don’t eyeball proportions on blank paper
- Cut paper or cardboard templates for each fixture and physically move them around
- Mark your existing plumbing stack and drain location; moving them is where budgets get expensive
- Tape out the final layout on the real floor at full size before ordering anything
- Treat “it won’t fit” as a hypothesis to test, not a verdict to accept

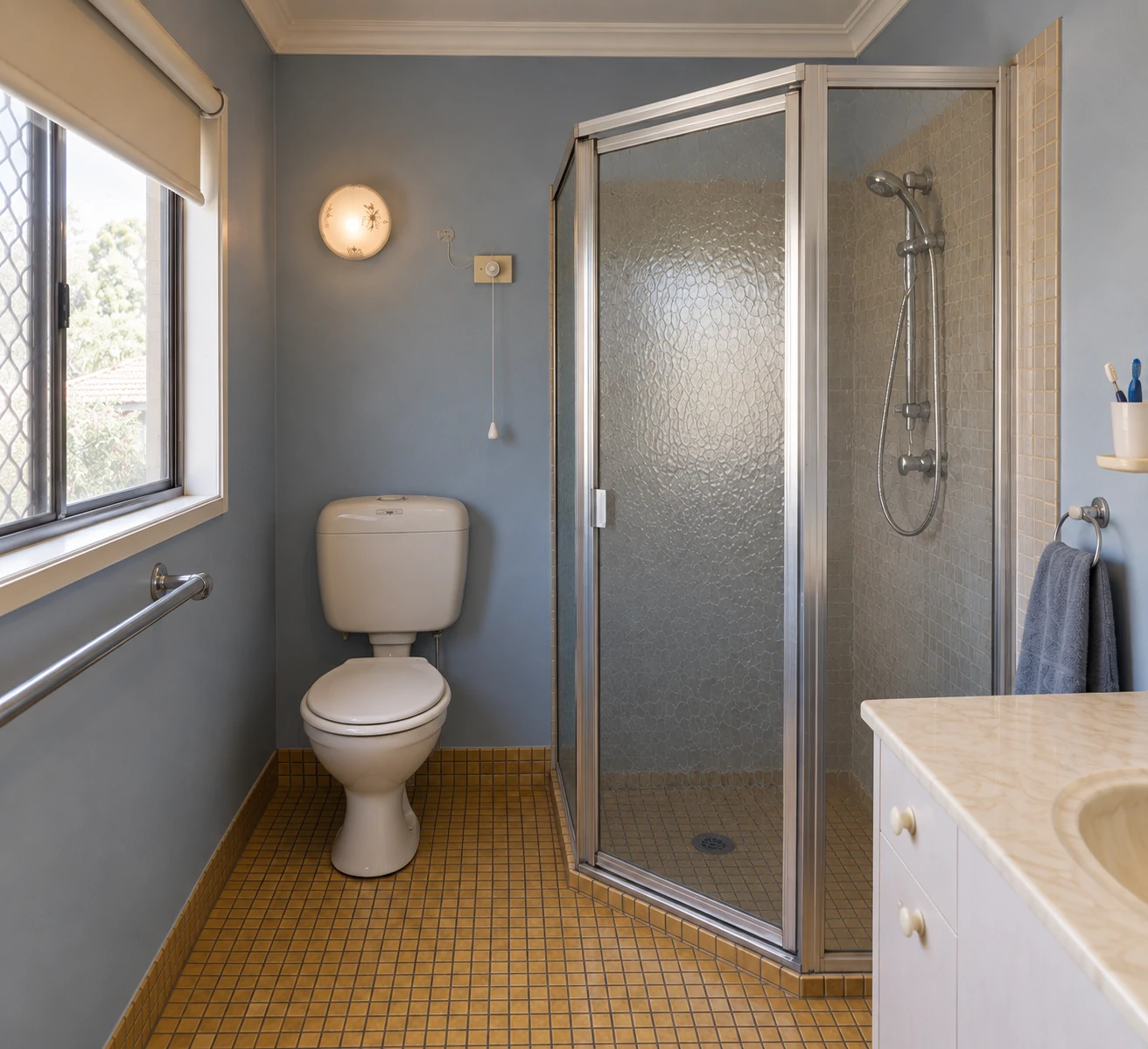

.webp)

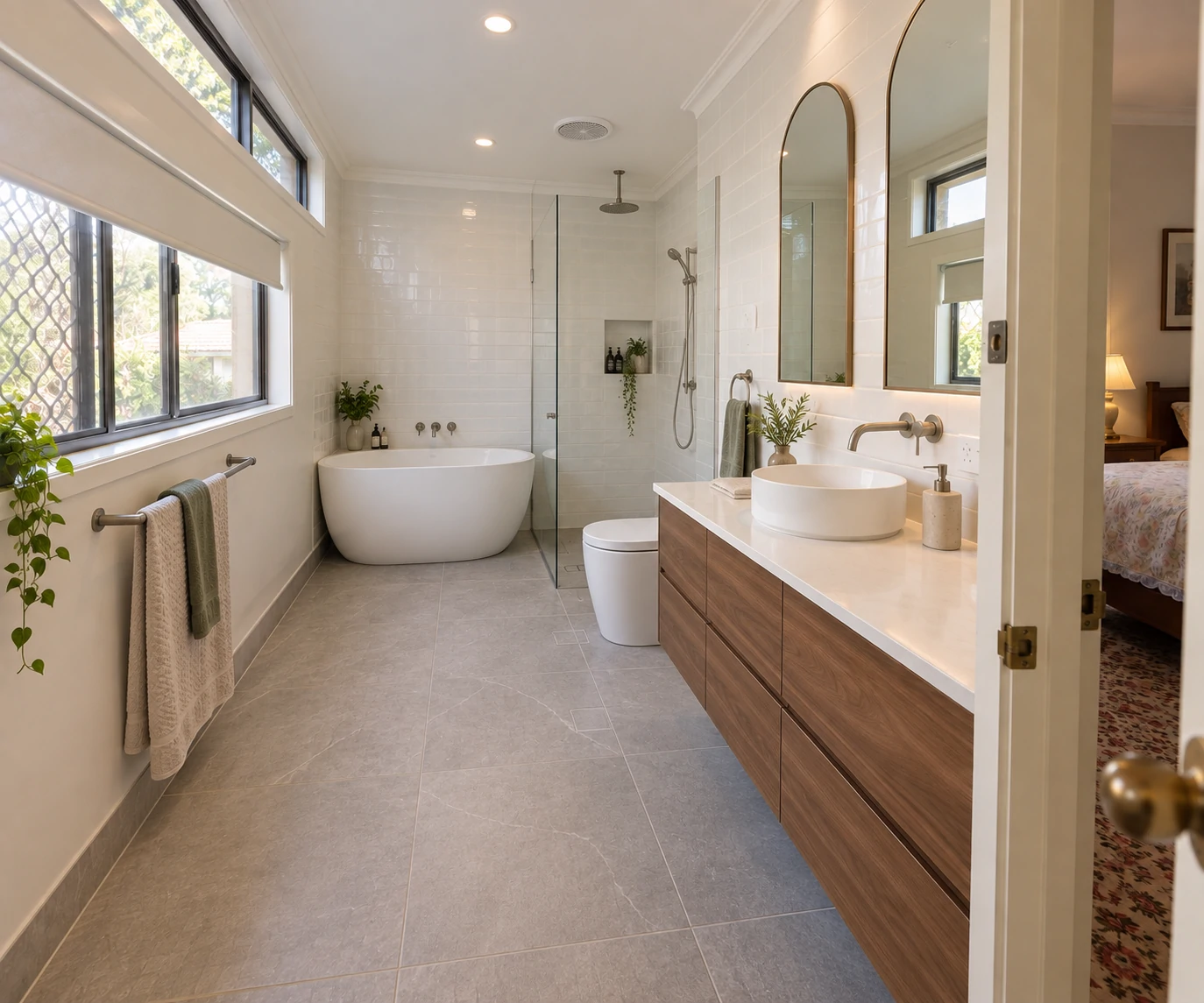

.webp)

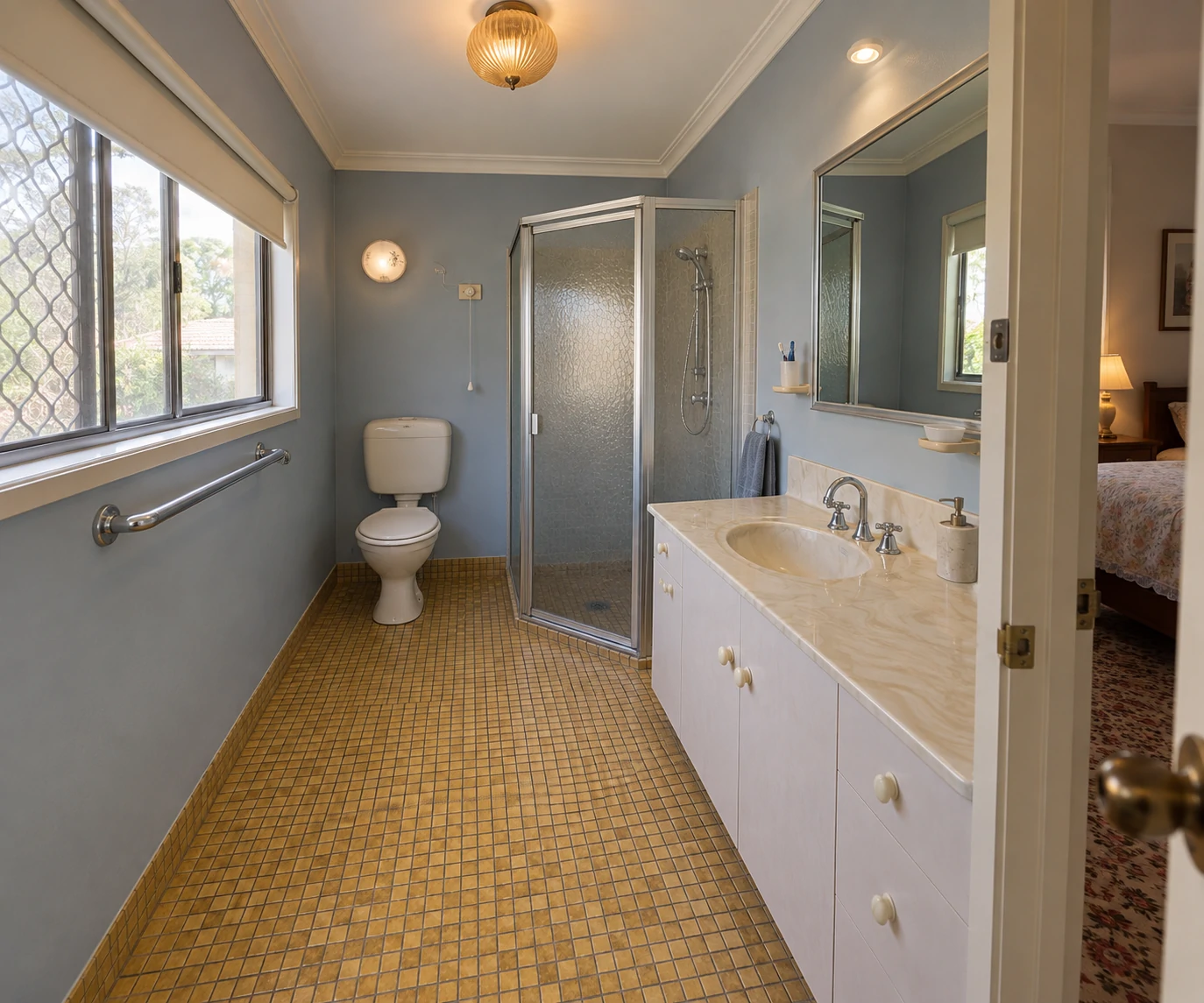

.webp)
What to Measure Before You Draw Anything
This is the step most people rush, and it’s the one that causes the most rework later. A bathroom layout drawn from memory or a rough guess will look fine on paper and then fall apart the moment a tradesperson tries to install something.
Before you draw a single line, go into the room with a tape measure (a laser measure is faster and slightly more accurate, but a decent tape works fine) and record:
Room measurements
- Overall length and width, measured at floor level and at a higher point like waist height — older homes are often not the same width top to bottom
- Ceiling height, and any sloped sections if it’s under a roofline
- Diagonal measurements corner to corner (more on why below)
Fixed points
- Every door opening: width, swing direction, and how far the door swings into the room
- Every window: width, height, and sill height from the floor
- Existing plumbing: where the toilet drain, shower drain, and vanity plumbing currently sit
- Position of the main stack or waste pipe, if you can identify it (a plumber can confirm this if you’re unsure)
- Any structural elements you can’t move — load-bearing walls, ducting, exhaust fan location
Electrical and services
- Existing power point locations
- Light switch and exhaust fan wiring
- Heating (in-slab, panel heater, or heat lamp wiring) if applicable
Most homeowners who redo this step later say the same thing: I wish I’d measured the windowsill height and the door swing properly the first time. Doors that swing into a shower’s future footprint, or a window sill that sits lower than a bath’s rim, are the kind of thing that only shows up once you’ve already drawn a “finished” plan.
How to Draw Your Room to Scale
Once you have real numbers, translate them onto graph paper. This sounds basic, but skipping “to scale” and drawing free-hand is the single biggest reason paper plans mislead people.
- Pick a scale and stick to it. A common, easy scale is 1 square on graph paper = 4 inches in real life (or 1 square = 10cm if you’re working in metric). Write the scale on the page so you don’t lose track of it later.
- Draw the outer walls first, using your actual measured dimensions — not the “should be” dimensions from a floor plan or listing, which are often rounded or wrong in older homes.
- Mark fixed elements: doors (with a swing arc), windows, plumbing stack location, and anything structural you can’t move.
- Mark your existing drain points clearly — this is the reference everything else gets measured against.
- Leave the fixtures out for now. At this stage you’re just locking in the “shell” of the room accurately. Fixtures come next.
A phone camera photo of your finished scale drawing is worth keeping — it’s genuinely useful to send to a plumber or tiler later so they’re working from the same numbers you are, instead of a verbal description.
Testing Fixture Placement With Paper Templates
This is the step that actually resolves the “will it fit” argument — and it’s the one almost nobody does properly.
Instead of drawing a bath, toilet, and vanity directly onto your scale plan and hoping the proportions look right, cut out separate templates to the same scale as your room drawing. Cardboard is more durable than paper if you’re going to be sliding pieces around a lot.
How to do it:
- Look up the external footprint dimensions of the fixtures you’re considering (most manufacturer or retailer product pages list overall length, width, and height — not just the visible “usable” measurements).
- Cut a template for each fixture at the same scale as your room plan.
- Lay the templates on your scale drawing and physically slide them into different arrangements.
- Photograph each version so you can compare them side by side later.
This is exactly the kind of exercise that turns a flat “no” into a useful conversation. It’s common to hear a fixture “won’t fit” based on a quick visual estimate in the room — and it’s just as common for that estimate to be wrong once someone actually lays out the real footprint. A first opinion isn’t always the final word; it’s a starting point worth testing yourself before you accept it or pay for a second opinion.
Once you have a layout on paper that looks like it works, take it one step further: mark it out with painter’s tape directly on the bathroom floor at full size. Standing inside a taped-out shower footprint, or opening a taped-out door swing, tells you things a drawing simply can’t — like whether a door will actually clear a vanity corner, or whether “technically fits” also means “comfortable to use.”
Clearance and Code Basics You Can Self-Check
Building codes vary by country and even by state or council, so treat the ranges below as general planning guidance to sanity-check your layout — not a substitute for checking your local code or your builder’s confirmation.
| Fixture | Typical Minimum Clearance in Front | Typical Minimum Side Clearance |
|---|---|---|
| Toilet | ~21–24 in (530–600mm) | ~15 in (380mm) from centre to nearest wall/fixture |
| Vanity/sink | ~21 in (530mm) | Varies by width of unit |
| Shower entry | ~24 in (600mm) clear floor space at entry | Door/screen swing must clear other fixtures |
| Bath | No strict clearance in most codes, but ~24 in (600mm) walking space alongside is a practical minimum | — |
Why this matters beyond compliance: a layout that technically meets minimum clearances can still feel cramped in daily use, especially in a shared or family bathroom. If you have the floor space, treating these numbers as a floor rather than a target usually pays off in day-to-day comfort.
If your final plan is close to these minimums anywhere, that’s exactly where a full-scale tape mockup on the floor earns its keep — numbers on paper don’t always convey what a tight corner feels like in real life.
Planning Around Fixed Elements: Doors, Windows, and Two-Door (Ensuite) Layouts
Not every bathroom is a clean rectangle with one door. A layout with two entry doors — common in Jack-and-Jill or dual-access ensuite configurations — adds real constraints that most generic planning guides skip entirely.
With two doors, you’re not just planning around one swing arc; you’re planning around two, and often around sightlines from two different rooms. A few practical points:
- Map both door swings on your scale drawing before placing anything else. The overlap zone between two door swings is often the most constrained part of the room, and it’s easy to miss until you’ve drawn both arcs.
- Consider what’s visible from each doorway. A layout that works structurally can still feel awkward if the toilet is the first thing visible from one of the entries.
- Fixed windows aren’t always a problem to work around — sometimes they’re worth designing around instead. An original window in an older home, in particular, can be worth keeping rather than automatically replacing, both for character and for cost. If a window’s sill height, position, or fixed frame is a constraint, that’s a cue to plan the bath, vanity, or shower position relative to it — not necessarily a reason to remove it.
- A “won’t fit” verdict from an initial walkthrough is often based on the room as it currently exists, not as the layout could be reconfigured. Two fixed doors don’t automatically rule out a bath, a walk-in shower, or a double vanity — they just narrow down which corner each of those needs to sit in. This is precisely where the paper-template exercise above is worth doing thoroughly, rather than trusting a first impression.
Older Home Considerations: Square Walls, Subfloors, and Hidden Costs
Here’s something most bathroom planning guides don’t tell you clearly enough: your paper plan is only as good as the assumption that your walls are actually square, your floor is level, and your subfloor is sound. In homes built more than 40–50 years ago, that assumption doesn’t always hold.
Before finalizing a layout, check whether your room is actually square:
- Measure both diagonals of the room, corner to corner.
- If the two diagonal measurements match, the room is square.
- If they differ by more than roughly half an inch to an inch (1–2cm) over a typical bathroom-sized room, the walls are out of square — sometimes by more.
This isn’t just a curiosity. A layout drawn assuming perfectly square walls can leave you with visible gaps, awkward cuts, or tile lines that don’t run true once installation actually starts. It’s a common discovery in older homes: walls that look straight to the eye turn out to be several centimetres out over the length of the room.
Warning — hidden cost triggers in older homes:
- Out-of-square walls or ceilings may require reframing sections of the room, not just re-tiling
- Subfloor rot or water damage, often invisible until old flooring or a shower base is removed, can mean replacing part or all of the subfloor
- Old wiring or plumbing behind walls may need updating to meet current code once walls are opened
- Materials common in pre-1990s construction (in some regions, this includes asbestos-containing sheeting or tile adhesive) should be assessed by a professional before demolition — this is not a DIY testing situation
This is also the honest, uncomfortable truth about budgeting a renovation on a modest finishes budget: choosing lower-cost tile, keeping the original vanity top, or reusing a towel rail can genuinely bring the finishes cost down — but it does nothing to protect you from a structural surprise once demolition starts. It’s entirely possible to plan carefully, choose economical materials throughout, and still see the total project cost climb well past the original budget because the floor, ceiling, or three of the four walls needed to be replaced to get a square, sound room to build the new layout into. That’s not a planning failure — it’s just what older housing stock sometimes requires, and it’s worth budgeting a contingency for before you start, not after.
Paper Plan vs. Planning App vs. Professional CAD
Each method has a real place in the process — the question is which stage you’re at.
| Method | Cost | Accuracy | Speed | Best Use Case |
|---|---|---|---|---|
| Hand-drawn scale plan (graph paper) | Free | Good, if measurements are accurate | Fast for one layout, slower for many variations | Early-stage exploration, testing multiple ideas quickly |
| Free retailer/planning app | Free | Good for standard fixtures with known dimensions | Fast, easy to adjust | Cross-checking a paper plan, visualizing finishes, generating a shareable version for tradespeople |
| Professional CAD / designer drawing | Paid (varies by scope) | Highest — accounts for structural and plumbing detail | Slower, involves a consultation | Final working drawings, council/permit submissions, complex or structural layout changes |
A practical approach many homeowners land on: sketch and test on paper first, since it’s free and fast for exploring options. Once you have a layout that survives the paper-template test, run it through a free planning app (several plumbing and bathroom retailers offer these) to visualize finishes and double-check dimensions against real product listings. Save professional CAD or a paid designer consultation for the final stage — confirming structural feasibility, getting permit-ready drawings, or resolving a layout that genuinely needs an expert opinion after your own testing.
Realistic Cost Ranges and Where Budgets Blow Out
Cost guidance for bathroom renovations tends to focus only on fixtures and finishes. That’s only part of the picture — and often not the part that determines your final number.
| Renovation Tier | Typical Range (fixtures & finishes only) | Notes |
|---|---|---|
| Budget | Lower end of market range | Keeping the existing layout and plumbing locations significantly reduces cost |
| Mid-range | Moderate | Some layout changes, mid-tier fixtures and tiling |
| High-end | Higher end of market range | Custom fixtures, layout changes, premium finishes |
Common hidden cost additions not included in a standard fixtures-and-finishes quote:
- Moving plumbing (toilet, shower, or vanity drain) to a new location
- Replacing subfloor due to water damage or rot
- Reframing walls that are out of square
- Replacing ceiling if damaged or if new exhaust/lighting placement requires it
- Waterproofing repairs or full waterproofing membrane replacement (often required by code when a wet area is substantially altered)
- Electrical upgrades to meet current code
It’s genuinely possible — and common — for a homeowner to keep every finish decision on the economical side (affordable tile, a reused towel rail, budget-conscious fittings) and still see the total project cost land well above the original estimate, simply because the room needed structural work to get to a stable, square starting point. That’s not a sign the budgeting was done poorly. It’s a sign the finishes budget and the structural contingency are two separate line items, and only one of them is usually where you’d expect to be spending.
A reasonable rule of thumb for older homes (roughly 50+ years old): budget a contingency of at least 20–30% above your fixtures-and-finishes estimate for potential structural findings, and treat that number as a real possibility rather than a worst-case scenario.
Common Layout Planning Mistakes to Avoid
- Skipping the diagonal-measurement square check — and finding out mid-renovation that the walls aren’t square
- Drawing fixtures without checking their true external footprint — a bath’s overall dimensions are often larger than its “usable” interior dimensions
- Ignoring door swing arcs when placing a vanity or shower screen too close to a doorway
- Assuming plumbing can move for free — relocating a drain is one of the more expensive layout changes, not a minor adjustment
- Not accounting for ventilation — a reshuffled layout can put an exhaust fan further from the shower than is effective, which matters for long-term mould and moisture control
- Trusting a verbal “it won’t fit” without testing it yourself with scaled templates or a full-size floor mockup
- Underbudgeting for older homes by only pricing fixtures and finishes, with no contingency for structural findings
DIY Paper Plan vs. Hiring a Designer: A Decision Framework
| Your Situation | Recommended Approach |
|---|---|
| Simple, square room; keeping the existing layout and plumbing locations | DIY paper plan is usually sufficient |
| Awkward shape, two doors, or fixed elements you need to work around | DIY paper plan first, then cross-check with a free planning app before finalizing |
| Moving plumbing, structural walls, or a heritage/older home with unknown wall condition | DIY paper plan to explore ideas, but bring in a designer or draftsperson before committing to a final layout |
| Council/permit approval required for structural changes | Professional CAD drawings are typically required regardless of how the layout was originally planned |
A paper plan isn’t a replacement for professional input when structural work is involved — it’s a way to walk into that conversation already knowing what you want to test, instead of starting from a blank page and a verbal description.

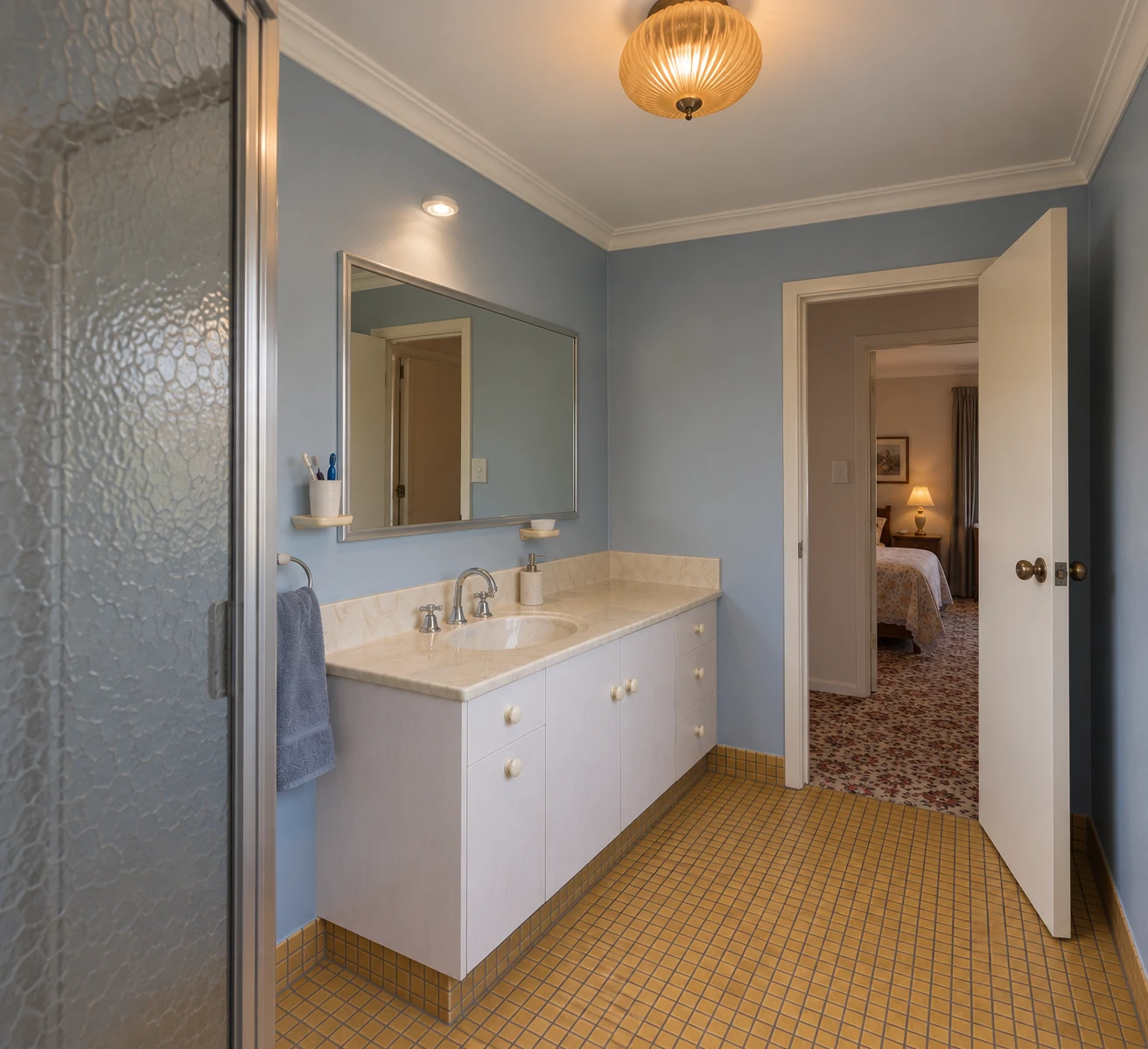

.webp)

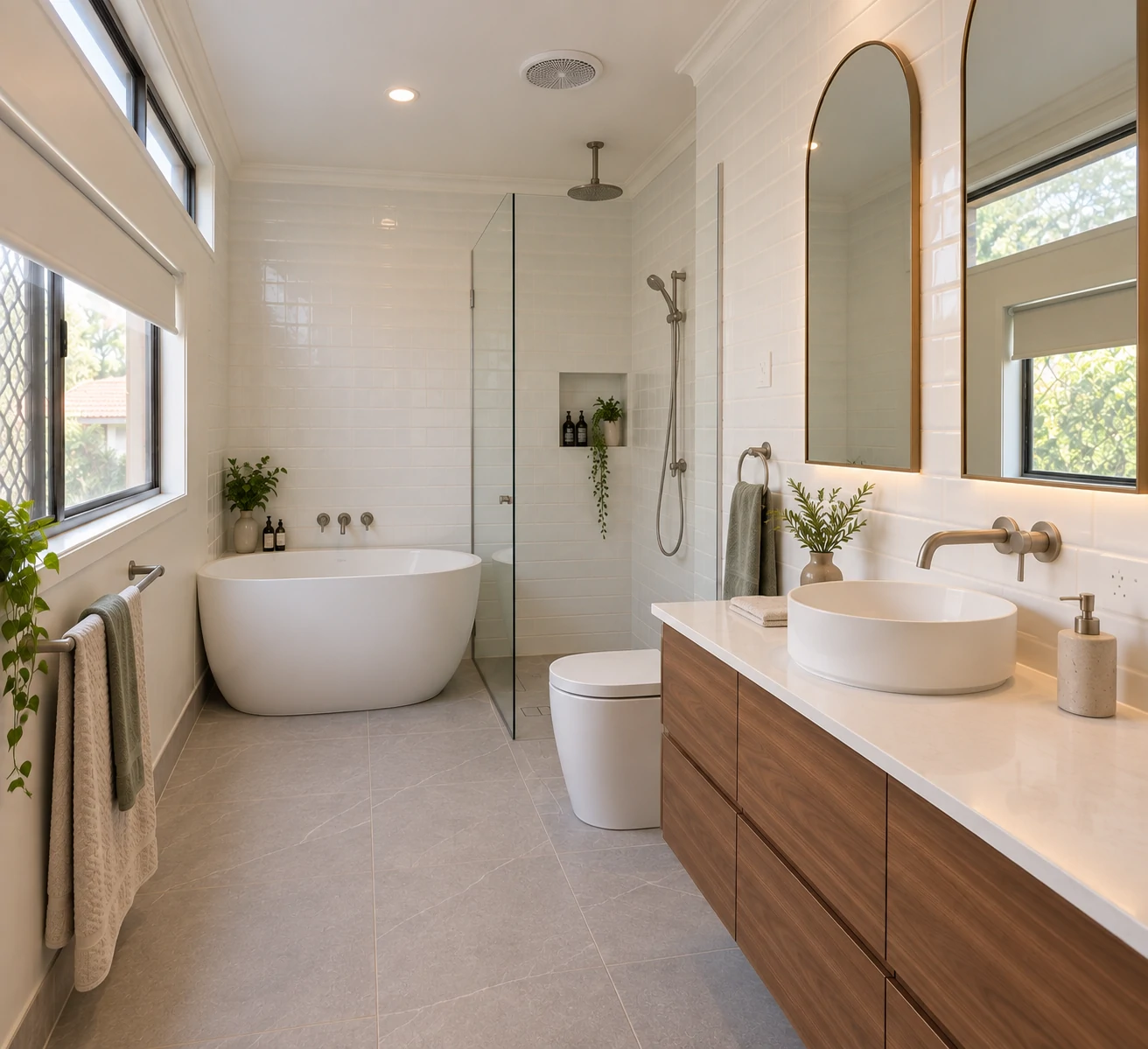

.webp)

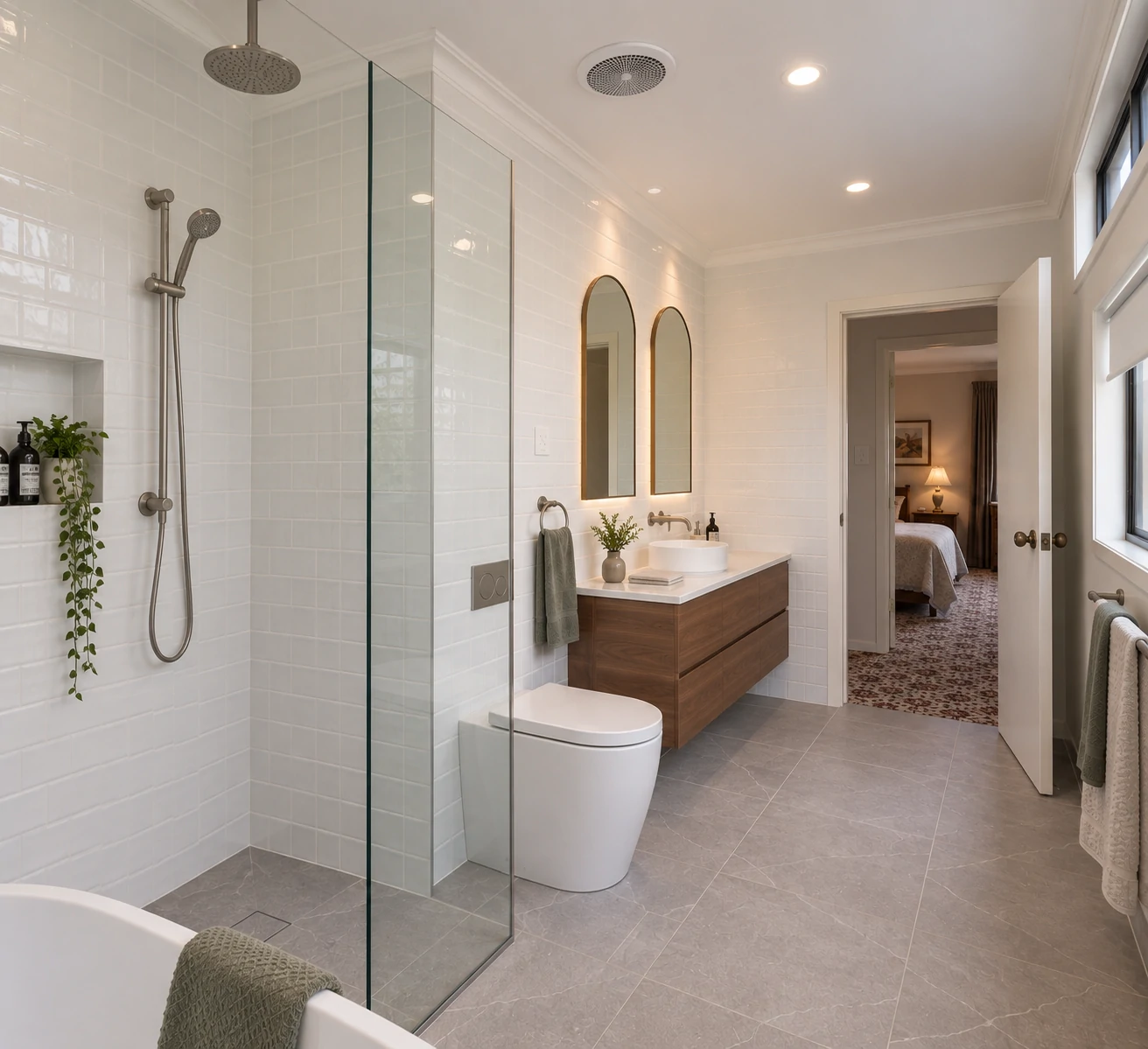

.webp)
Frequently Asked Questions
What’s the easiest way to draw a bathroom layout to scale by hand? Use graph paper and pick a simple scale, such as 1 square equals 4 inches (or 10cm). Draw the room’s actual measured dimensions first, then add fixed elements like doors, windows, and plumbing points before considering fixtures.
What should I measure first before sketching a bathroom layout? Start with the room’s overall dimensions (measured at more than one height), then record every door swing, window position and sill height, and the location of existing plumbing and drains.
How do I know if a bathtub will actually fit in my space? Cut a paper or cardboard template to the bath’s actual external footprint dimensions, at the same scale as your room drawing, and physically test it against your scaled plan and door swings — rather than relying on a visual estimate.
Can I test a layout without hiring a designer? Yes. A scale drawing combined with fixture templates and a full-size floor mockup using painter’s tape will reveal most fit and clearance issues before you need to pay for a professional opinion.
What’s the minimum clearance needed in front of a toilet and vanity? General guidance suggests roughly 21–24 inches (530–600mm) of clear floor space in front of a toilet, and a similar clearance in front of a vanity, though exact requirements vary by local code.
How do I plan a bathroom layout with two entry doors (Jack-and-Jill/ensuite)? Map both door swing arcs on your scale drawing before placing any fixtures, since the overlap zone between them is often the most constrained part of the room. Then test fixture placement around both swings using scaled templates.
Do I need to keep my plumbing in the same location to save money? Generally, yes. Keeping the toilet, shower, and vanity drains in their existing locations is typically one of the biggest cost-saving decisions available, since relocating plumbing adds both labour and potential structural work.
How can I tell if my bathroom walls are out of square before renovating? Measure both diagonals of the room from corner to corner. If they differ by more than roughly half an inch to an inch over a standard bathroom, the walls are out of square, which is common in older homes.
Are free bathroom planning apps accurate enough to rely on? They’re generally accurate for cross-checking standard fixture dimensions and visualizing a layout, but they typically can’t account for structural issues like out-of-square walls, which is why a physical tape measurement check is still worthwhile.
Why did my bathroom renovation cost more than my tile and fixture budget? This usually happens when structural issues — an out-of-square wall, a damaged subfloor, or an aging ceiling — are discovered after demolition begins. Economical finish choices don’t offset structural repair costs, which is why a contingency budget matters, particularly in older homes.
