The Best Free Tools to Design a Bathroom Remodel (And What "Free" Actually Costs You)

If you’ve typed “best free bathroom design app” into Google, you’ve probably already hit the problem this article exists to solve: every list you find ranks the same five apps by how nice their interface looks, and none of them tell you which one will actually get you from “I hate this bathroom” to a plan you can hand a contractor.

Here’s the short version, then we’ll get into the parts that actually matter.

Quick answer: There’s no single best free bathroom design tool, because “design” means three different things. For an accurate floor plan you can build from, use a 2D/3D planner like Planner 5D, Roomstyler, or SketchUp Free. For a cost ballpark tied to real materials, use a retailer’s free project planner. For a fast “what would this tile look like” preview, an AI photo-redesign app is quicker — but it isn’t measuring anything, and it won’t tell you if your layout is buildable.

Quick takeaways:

Floor-plan accuracy and style previews are two different jobs — most people only need one of them, not both, at least at first
Nearly every “free” tool paywalls something: HD export, watermark removal, or a cap on how many projects you can save
A free app can show you a layout. It cannot tell you whether your drain, vent stack, or load-bearing wall will let you build it
Measuring the room properly before you open any app saves more redesign time than picking the “best” app ever will

What “Free” Actually Means in These Apps

This is the part most roundups skip, and it’s the part that actually causes frustration.

“Free” bathroom design software almost always means free up to a point, and that point is usually the exact moment you need the output most. Watch for these four traps:

⚠️ Common free-tier catches:

Watermarks on export — the render looks perfect until you try to save or print it, and there’s a logo across your tile pattern
Resolution caps — you can view the plan on screen at full quality, but the exported PDF or image is too low-res to actually read measurements from
Project limits — one free project, and starting over means losing your first layout
Feature gating — 2D plans are free, but the 3D walkthrough or the “true to scale” measurement tool sits behind a subscription

None of this makes free tools useless — it just means you should decide before you invest three evenings in a layout whether you’re going to need the paid tier to actually use what you build. Check the export terms first. It takes two minutes and saves a genuinely annoying surprise later.

Layout Tools vs. Style-Preview Tools: Pick the Right Category First

This is the distinction that would save people the most time, and almost nobody explains it clearly. There are two fundamentally different kinds of “free bathroom design tool,” and they solve different problems.

	Layout / floor-plan tools	AI style-preview tools
What they do	Build a to-scale 2D or 3D floor plan using your actual measurements	Generate a redesigned image of your existing bathroom photo in a new style
Good for	Testing whether a walk-in shower fits, planning fixture placement, producing something a contractor can quote from	Deciding between tile colors, vanity styles, or an overall look before you commit
Accuracy	Measurement-based — as accurate as the numbers you enter	Visual only — doesn’t know your plumbing, wall types, or real dimensions
Typical free limits	Export resolution, number of saved projects	Number of free generations (often 1–3), then a subscription
Examples	Planner 5D, Roomstyler 3D Home Planner, SketchUp Free, Sweet Home 3D	General-purpose AI photo-redesign apps
Common mistake	Using a generic room template instead of your real dimensions	Assuming the AI render is a buildable plan

If you only remember one thing from this article, make it this: measure and lay out first, style-preview second. Falling in love with a gorgeous AI render of a floating vanity and rainfall shower, only to find out the drain can’t move there without breaking into the slab, is one of the more common — and avoidable — frustrations in this whole process.

The Best Free Bathroom Floor-Plan Tools, Reviewed

Planner 5D

A drag-and-drop 2D/3D planner with a genuinely usable free tier. You can build a to-scale floor plan, drop in fixtures, and switch to a 3D view to check sightlines. The free version caps you on high-resolution export and some premium furniture items, but for laying out a real bathroom footprint, it’s one of the more capable free options. Best for: homeowners who want a 3D sense of the space without a steep learning curve.

Roomstyler 3D Home Planner

Browser-based, no download, and reasonably intuitive once you get past the initial interface. Handles bathroom-specific fixtures decently and lets you toggle between a top-down floor plan and a 3D render. Best for: a quick, no-install layout session.

SketchUp Free (web)

This is closer to true CAD than the drag-and-drop tools, which means more precision and a longer learning curve. If you want exact measurements down to the eighth of an inch, or you’re planning to hand a file to a contractor who already works in SketchUp, it’s worth the extra hour it takes to get comfortable. Best for: people planning a more involved renovation who want plan accuracy over ease of use.

Sweet Home 3D

A free, open-source desktop program rather than a web app. It’s dated-looking compared to newer tools, but it has no watermark, no subscription upsell, and no project cap because there’s nothing to sell you — which, for a strictly free tool, is worth something. Best for: anyone who wants a permanent, offline planning tool with no strings attached.

Retailer project planners (Lowe’s, Home Depot)

These aren’t full design tools, but they’re genuinely useful for a different reason: they tie your layout to real SKUs and generate a material list with current pricing. Less flexible on layout, more useful for budgeting. Best for: turning a finished layout into an actual shopping list.

Best Free Tools for Ballparking Cost and Materials

Renovation scope	Typical cost range (materials + labor)	What drives the range
Cosmetic refresh (paint, fixtures, vanity swap)	$1,500–$5,000	Fixture quality, whether plumbing stays put
Mid-range full remodel	$10,000–$18,000	Tile choice, new vanity, updated shower/tub
Walk-in shower conversion	$6,000–$12,000	Whether the drain has to move, glass enclosure cost
Full gut renovation, layout changed	$20,000–$35,000+	Moving plumbing/electrical, structural changes, permit requirements

These are ranges, not quotes — regional labor costs and material choices swing them significantly. The point of running this before you finalize a design isn’t precision, it’s preventing the fairly common experience of designing a bathroom you love and then discovering it’s double the budget you had in mind.

Step-by-Step: Planning Your Bathroom Remodel in a Free App

Measure the actual room first. Length, width, ceiling height, door swing direction, window and vent locations. A photo-scanning measurement app helps here, but a tape measure and graph paper work fine too — the point is real numbers, not a template.
Note what’s fixed. Where the drain, supply lines, and main vent stack currently are. Moving these is possible but adds real cost, so knowing the starting point shapes what layouts are actually realistic.
Build the floor plan to scale. Enter your real dimensions into the tool rather than starting from a preset room size. This single step prevents most of the “it looked fine on screen” disappointments.
Place fixtures and check clearances. Toilet, vanity, shower/tub. Most codes want roughly 21 inches of clear floor space in front of a toilet and similar clearance for a vanity — check your local code, since minimums vary.
Switch to 3D and walk through it. This is where door swing conflicts and “wait, that shower door hits the vanity” problems usually surface — much cheaper to catch here than after demo.
Only now, move to style. Once the layout is locked, use a style-preview tool or the app’s material library to test tile, paint, and fixture finishes.
Export what you can, screenshot the rest. If the free tier limits your export, screenshot the plan views you need before you lose access, and note the exact dimensions separately in case you need to recreate anything.

Common Mistakes People Make With Free Design Apps

Mistake	Why it causes problems
Using a generic room template instead of real measurements	The layout looks finished but doesn’t match your actual walls, so it’s unusable the moment you try to build from it
Ignoring existing plumbing location	A gorgeous new layout can turn into a five-figure plumbing relocation if the drain has to move
Skipping clearance codes	A vanity or door that looks fine in a render can violate minimum clearance and cause real problems at inspection
Treating an AI style render as a final plan	It’s a mood board, not a measured drawing — there’s no clearance or plumbing logic behind the image
Not checking tile scale	A tile that looks proportional in a 3D render can visually shrink a small bathroom once it’s actually installed
Losing the free project before exporting	Many free tiers auto-delete inactive projects — save your measurements outside the app as a backup

From Digital Plan to Real Renovation: A Real Example

Every one of the tool comparisons above is more useful once you’ve seen what an actual before-and-after looks like — because the honest answer to “will my plan really turn into this?” is that it depends on decisions made well before any tile goes up.

Here’s the starting point: a dated, fully tiled bathroom with a built-in tub, wall-mounted taps, and a layout that hadn’t been touched in decades.

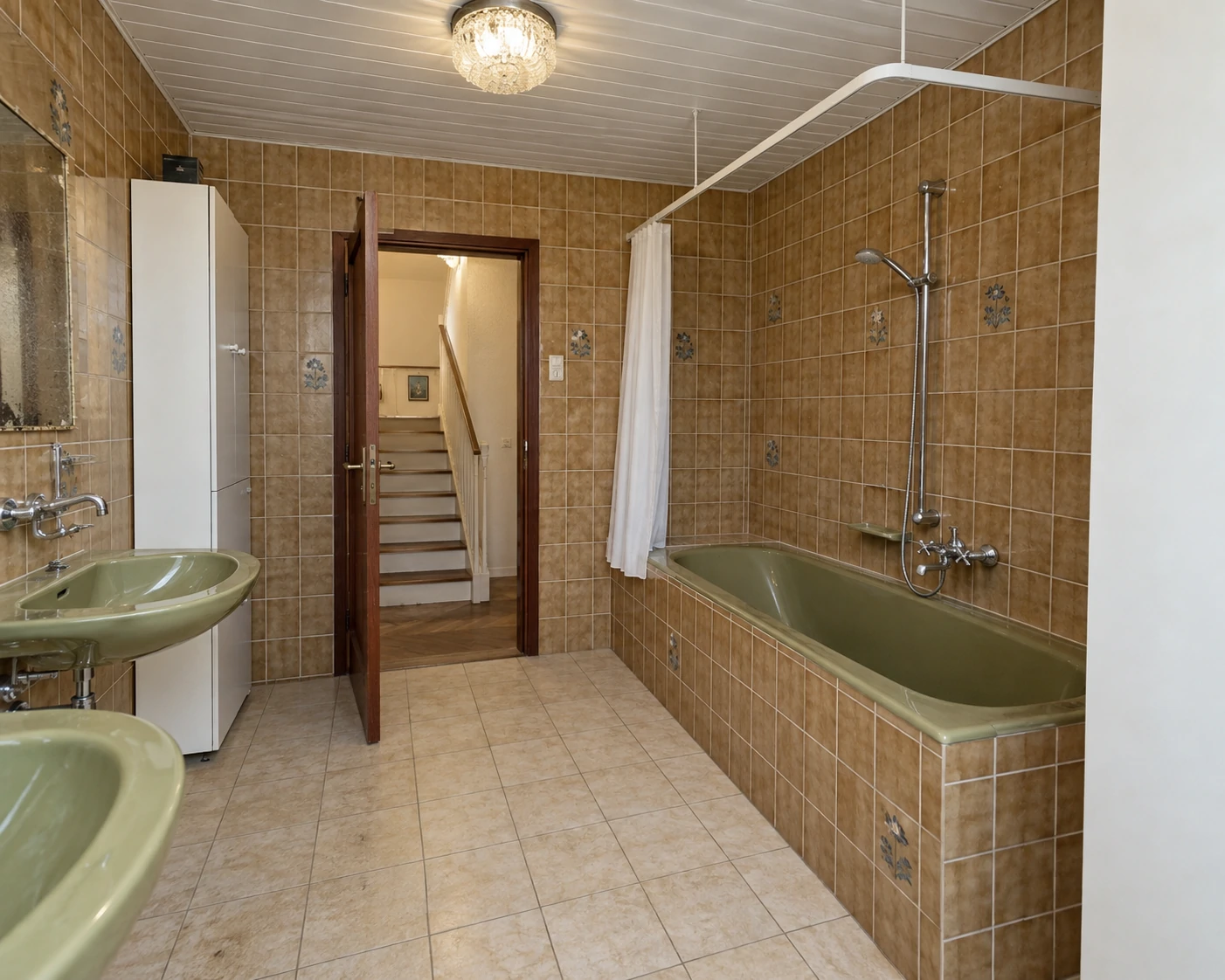

Before: the original layout — built-in tub, dated tile from floor to ceiling, minimal storage.

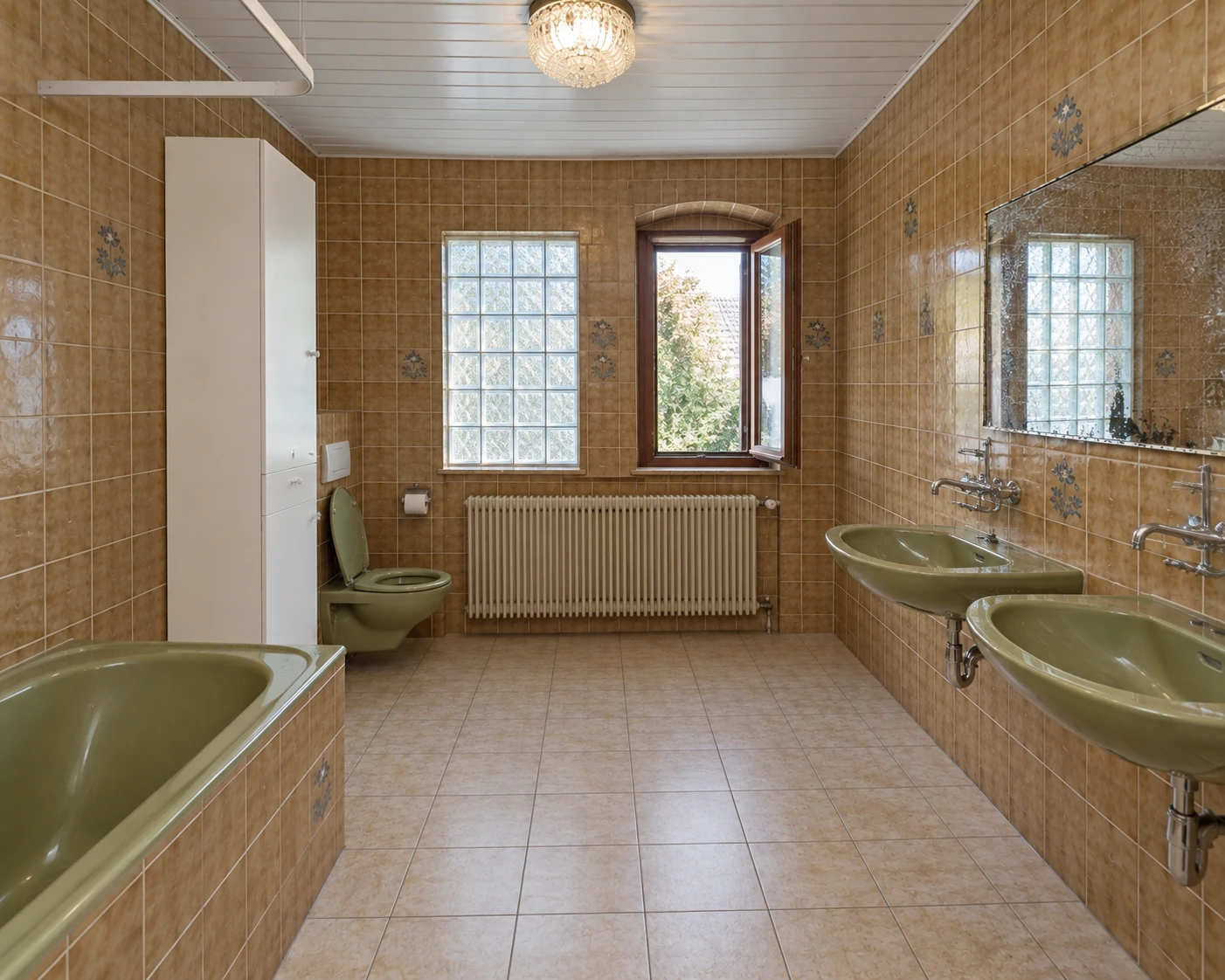

Before: twin pedestal sinks and a green suite that was standard decades ago but left the room feeling closed in and clinical.

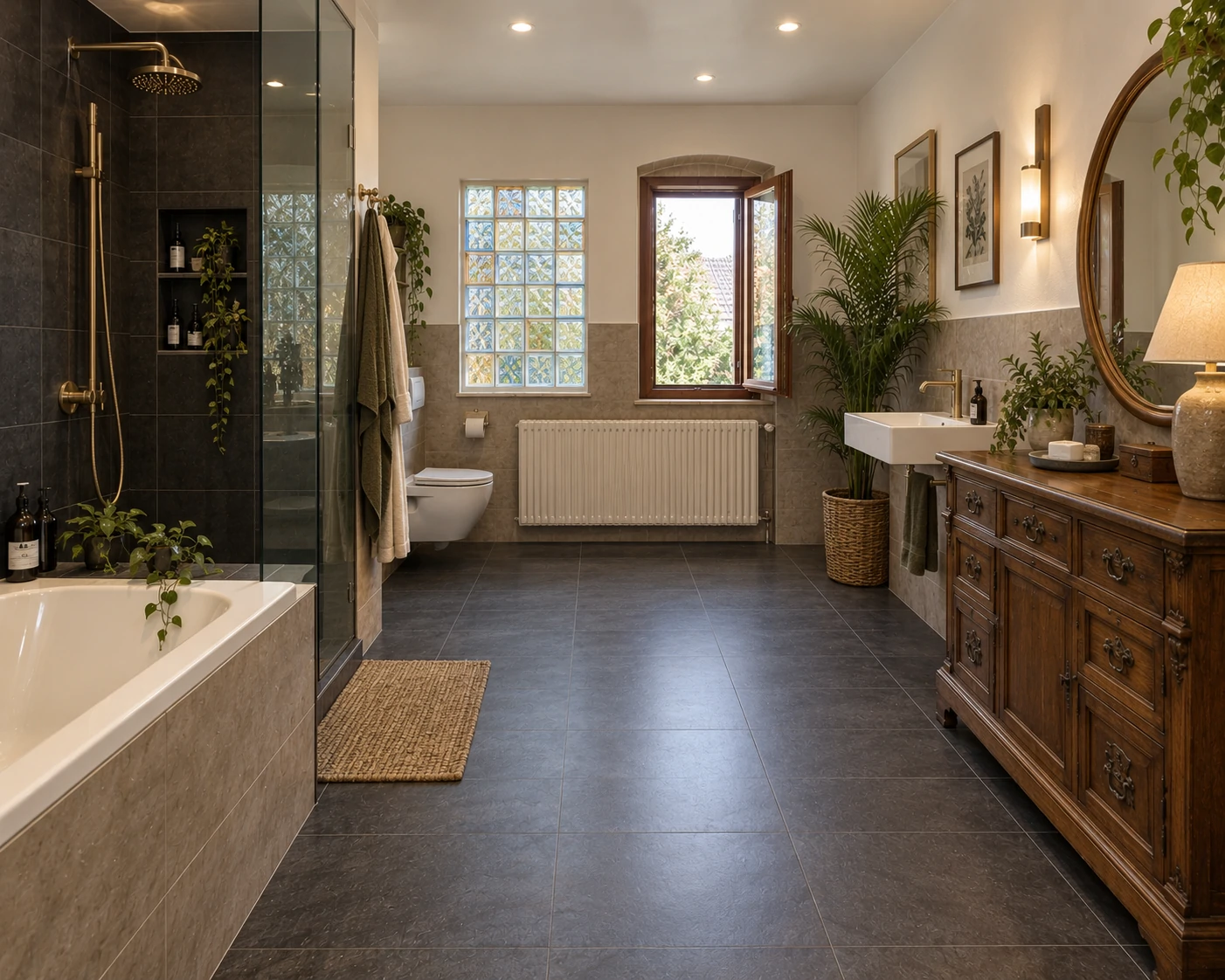

The finished result reworked the same footprint into a walk-in shower with a built-in bench, a separate soaking tub, a dedicated toilet nook, and a furniture-style vanity that reads more like a piece of furniture than a fixture.

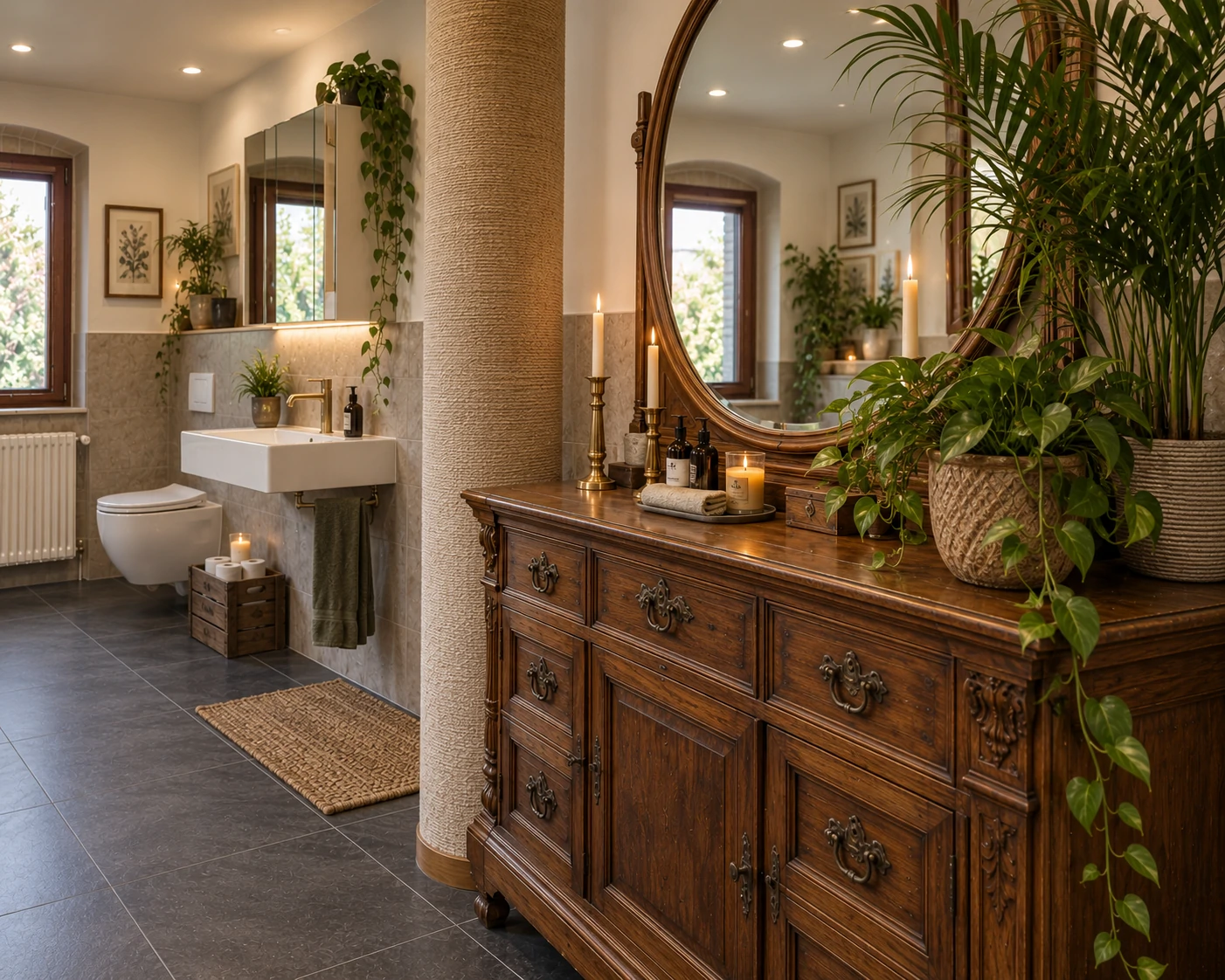

After: the sink area now anchors around a repurposed antique dresser, which does double duty as storage and as the visual focal point of the room.

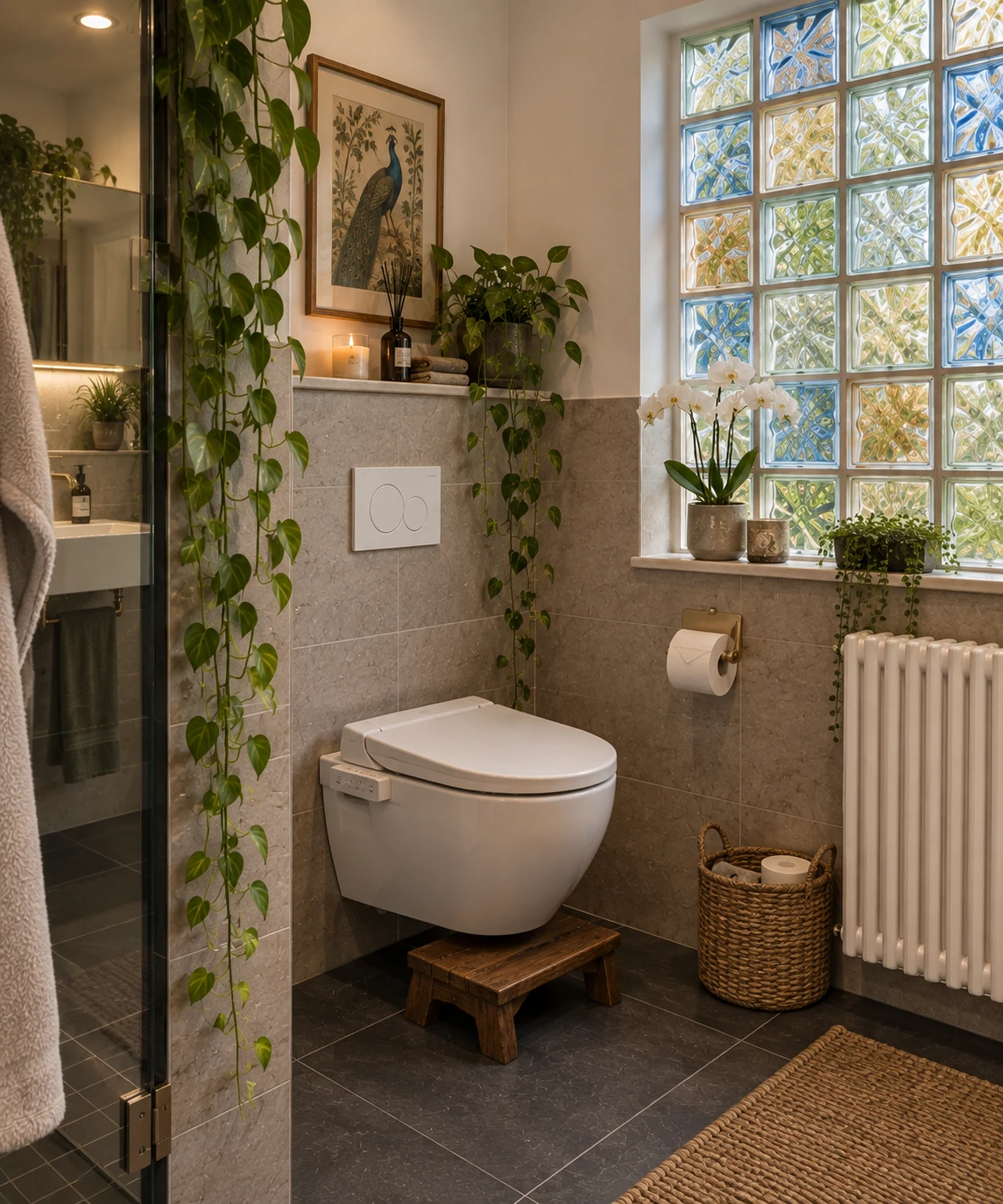

After: the toilet was tucked into its own nook, separated visually from the rest of the room — a layout choice that’s easy to plan for on paper but easy to miss if you’re only thinking in terms of “fit the fixtures in.”

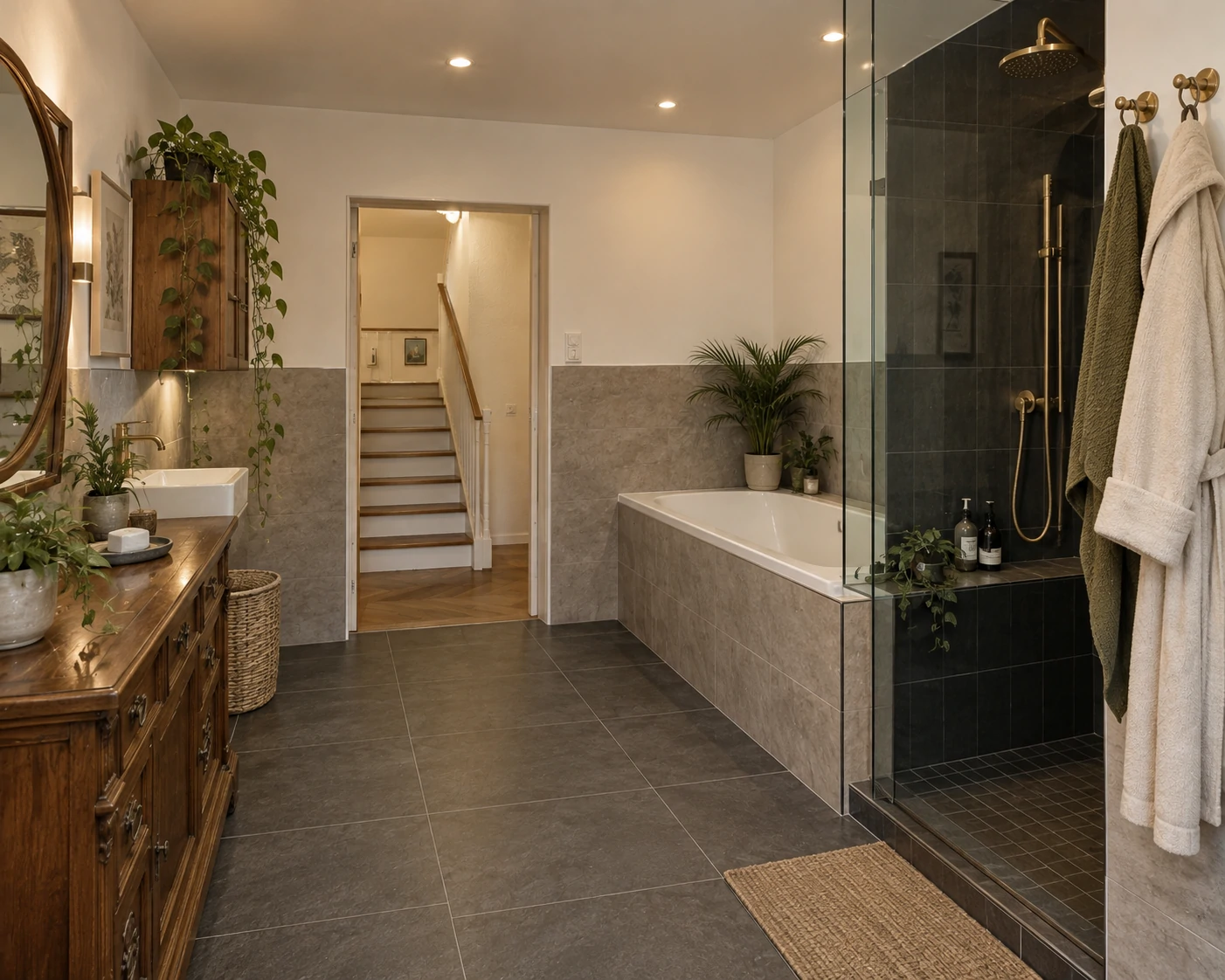

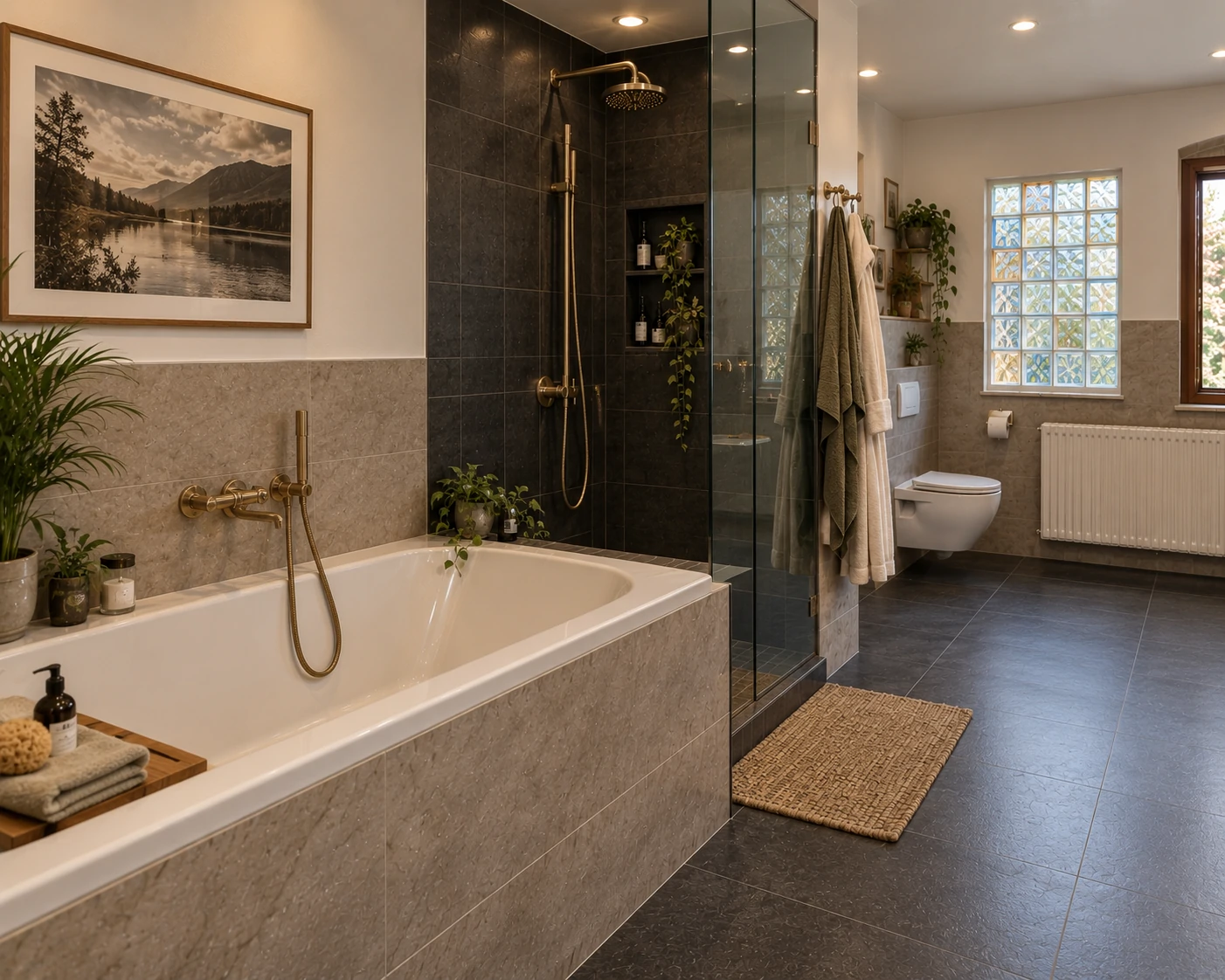

After: the tub and shower were split into distinct zones with a glass divider, rather than combined into a single tub/shower unit — a common upgrade that changes the whole feel of a room without changing its footprint.

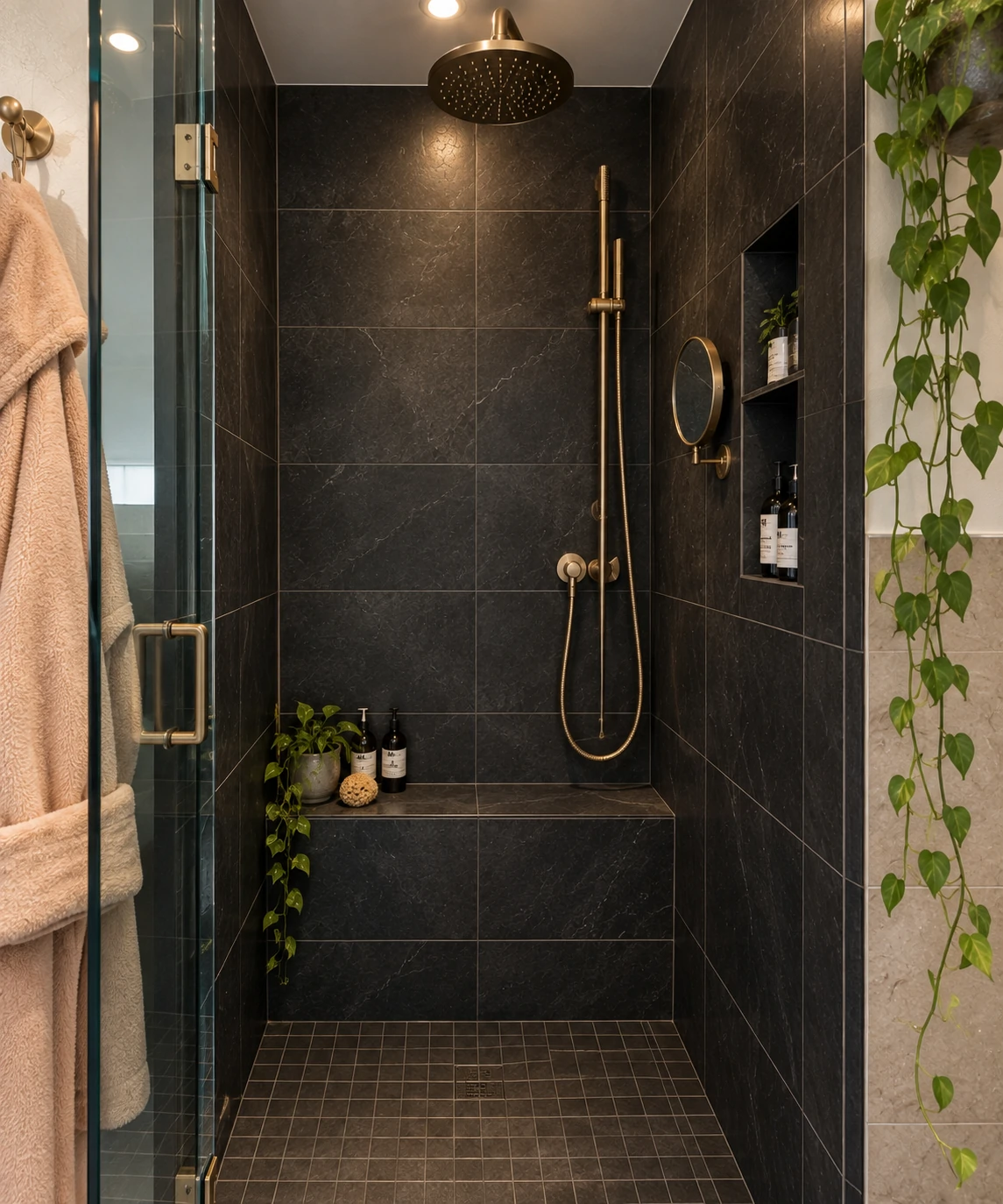

After: the walk-in shower includes a built-in bench and a rainfall shower head — a layout that only works because the drain and clearances were planned before any tile was chosen.

The point of walking through this isn’t that any specific app produced it — it’s that the sequence matters more than the software. Layout and clearances get decided first. Plumbing constraints get respected, not discovered halfway through. Style and materials come last, once the bones of the room are settled. A free planning tool can absolutely get you through that sequence — it just can’t skip it for you.

When a Free Tool Isn’t Enough

Free tools are genuinely good for exploring options and building a first-pass layout. They stop being enough at a fairly predictable point:

You’re moving plumbing or load-bearing structure — this needs a plumber or structural assessment regardless of how good your digital plan looks
You need permit-ready drawings — most free tools produce a helpful visual, not a stamped or code-compliant drawing
You want photorealistic renders for a contractor bid — paid tiers or a designer’s software will get you further, faster
You’ve redone the layout three times and it still doesn’t work — at that point, an hour with a designer or contractor often resolves what another round of drag-and-drop can’t

A simple way to decide: if the output needs to convince you, a free tool is usually enough. If the output needs to convince a contractor, an inspector, or a permit office, budget for either a paid tier or a professional at that stage — not before.

FAQ

Is any bathroom design app actually free, with no watermark or paywall? Some are — Sweet Home 3D is fully free with no subscription tier. Most web-based tools (Planner 5D, Roomstyler) are free to use but limit export quality or watermark high-resolution downloads.

What’s the difference between a floor-plan app and an AI bathroom redesign app? A floor-plan app builds a to-scale layout from your real measurements. An AI redesign app generates a styled image from a photo of your existing bathroom — it’s useful for style direction, not for measurements or plumbing logic.

Can I use a free design app to get an accurate contractor quote? A well-built floor plan with real measurements gets you close. Most contractors will still want to verify measurements and plumbing locations in person before quoting.

Do free bathroom planning apps account for plumbing and drain locations? No — they’ll let you place a toilet or shower anywhere on the floor plan, but they don’t know where your actual drain or vent stack is. That’s on you to note and respect.

Which free app is easiest for a first-time user? Roomstyler and Planner 5D both have a gentler learning curve than SketchUp Free, which is closer to true CAD software.

How accurate are AI photo-redesign apps compared to what I’ll actually get built? They’re accurate for style and color direction, not for layout or feasibility. Treat the output as a mood board.

What measurements do I need before I start designing? Room length, width, and ceiling height; door swing direction; window and vent locations; and the current position of your drain and supply lines.

Will a free bathroom design tool tell me if my layout is up to code? No. Clearance codes (space in front of a toilet or vanity, for example) vary by location, and free tools generally don’t check for them automatically.

How long does it actually take to design a bathroom in one of these apps? Plan for a few focused sessions rather than one sitting — most people revise the layout at least twice once they see it in 3D.

Are retailer tools like Lowe’s or Home Depot’s project planner better than standalone design apps? They serve a different purpose — less flexible for layout, but useful for turning a finished plan into a real material list and cost estimate.
